VW Passat MY13 RVC not working

[iampivot]

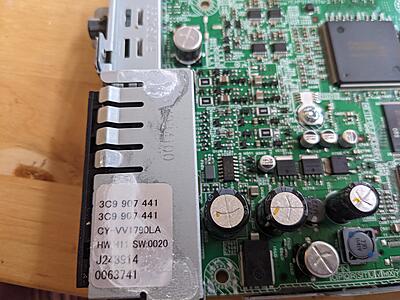

My RVC stopped working, with no communication with the rear control unit. I finally got time to get it out, and it has a bit of corrosion. One of the pins on the connector is bent as well, I belive due to corrosion. Not sure how smart it was to locate this unit below the boot side pocket. I don't think there's a way to repair this pin, it can be seen bent in one of the photos?

I've seen new control units are about $400+, so will try to get a new one from the wreckers.

[kamold]

Can't say I've ever seen one of those get water damaged.
Might want to check where the water ingress is coming from.
Just get one on ebay or from a wrecker.

[iampivot]

I think it must have been a bottle in the side pocket above it that has leaked. A friendly forum member is sending me a different unit to test. It's a version H08 instead of H11, not sure if it will be any difference.

[iampivot]

I've managed to source a new module from a wrecker. I'm still getting the "rear view camera system is not available at present" though, so I'm wondering if the camera is not receiving any power. I'd assume that the white cable pair connected to the second connector for the camera (which has a red and blue wire) should supply 12v to the camera when the car is in reverse? I don't see any voltage across these at all, so I'm wondering if there is a fuse somewhere which is blown.

[iampivot]

Tried to clear fault codes, I'm now getting fault 01043 controle module; incorrect software version. I believe this might be because I'm using a module from a Tiguan. It has coding 0020010, but it should be 0020007 for a passat wagon. When I try to change it, I get an Error 31: request out of range. I tried using security access code 22351, but it seems to work for adaptation only.

[kamold]

What's the software version on the RVC module?

[iampivot]

rev H13

Had to shorten the scan to get inside the 10k size limit.

Friday,16,April,2021,04:39:40:47231
VCDS -- Windows Based VAG/VAS Emulator Running on Windows 10 x64
VCDS Version: 21.3.0.0 (x64)
Data version: 20210226 DS325.0
www.Ross-Tech.com


VIN: WVWZZZ3CZDE0*****   License Plate:


Chassis Type: 3C-VW46 (7N0)
Scan: 01 02 03 08 09 10 15 16 17 19 25 2E 37 42 44 46 4C 4F 52 53
          56 61 62 6C 6D 72 77

VIN: WVWZZZ3CZDE0*****   Mileage: 231020km-143549miles

01-Engine -- Status: OK 0000
02-Auto Trans -- Status: OK 0000
03-ABS Brakes -- Status: OK 0000
04-Steering Angle -- Status: OK 0000
08-Auto HVAC -- Status: OK 0000
09-Cent. Elect. -- Status: OK 0000
10-Park/Steer Assist -- Status: OK 0000
15-Airbags -- Status: OK 0000
16-Steering wheel -- Status: OK 0000
17-Instruments -- Status: OK 0000
19-CAN Gateway -- Status: OK 0000
25-Immobilizer -- Status: OK 0000
2E-Media Player 3 -- Status: OK 0000
37-Navigation -- Status: OK 0000
42-Door Elect, Driver -- Status: OK 0000
44-Steering Assist -- Status: OK 0000
46-Central Conv. -- Status: OK 0000
4C-Tire Pressure II -- Status: OK 0000
4F-Centr. Electr. II -- Status: OK 0000
52-Door Elect, Pass. -- Status: OK 0000
53-Parking Brake -- Status: OK 0000
56-Radio -- Status: OK 0000
61-Battery Regul. -- Status: OK 0000
62-Door, Rear Left -- Status: OK 0000
6C-Back-up Cam. -- Status: Malfunction 0010
6D-Trunk Elect. -- Status: OK 0000
72-Door, Rear Right -- Status: OK 0000
77-Telephone -- Status: OK 0000


-------------------------------------------------------------------------------
Address 19: CAN Gateway (J533)       Labels:. 7N0-907-530-V2.clb
   Part No SW: 7N0 907 530 T    HW: 7N0 907 530 K
   Component: J533  Gateway H40 1632
   Revision:   H40       Serial number: 170612F2000410
   Coding: 462007
   Shop #: WSC 05314 000 00000
   VCID: 41A79849D831B5838C-8014

No fault code found.

-------------------------------------------------------------------------------

-------------------------------------------------------------------------------
Address 37: Navigation (J0506)       Labels:. 1T0-035-680.clb
   Part No SW: 1T0 035 680 L    HW: 1T0 035 680 D
   Component: RNS-MID       H70 5238
   Revision: AB001001    Serial number: VWZ6Z7M6168141
   Coding: 00000400000000A00011
   Shop #: WSC 05314 123 12345
   VCID: 3753F69186F5FB3332-8062

   Subsystem 1 - Part No: 7L6 919 859 G
   Component: AUNZ V8  8207

No fault code found.

-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
Address 46: Central Conv.        Labels:. 3C0-959-433-46.clb
   Part No SW: 3AA 959 433     HW: 3AA 959 433
   Component:    KSG PQ47 ELV 045 0634
   Revision: 00045000    Serial number: VWZCZ000000000
   Coding: 00900A00D2830E763404941570085F0B005801
   Shop #: WSC 40139 959 99896
   VCID: 76CD3B95017F423BE9-8022

   Subsystem 1 - Component:   Sounder n.mounted

   Subsystem 2 - Component:       NGS n.mounted

   Subsystem 3 - Component:      IRUE n.mounted

No fault code found.

-------------------------------------------------------------------------------
Address 4F: Centr. Electr. II (J520)       Labels:. 1K0-907-532.clb
   Part No SW: 7N0 907 532     HW: 7N0 907 530 K
   Component: EZE_2         H40 1632
   Revision:   H40       Serial number: 170612F2000410
   Coding: 00000008
   Shop #: WSC 05314 000 00000
   VCID: 6FC30EF1BE2573F32A-803A

   Subsystem 1 - Part No SW: 3AA 919 204 A    HW: 3AA 919 204 A
   Component: Analoguhr  004 0004

No fault code found.

-------------------------------------------------------------------------------
-------------------------------------------------------------------------------
Address 56: Radio (J0506)       Labels:. 1T0-035-680.clb
   Part No SW: 1T0 035 680 L    HW: 1T0 035 680 D
   Component: RNS-MID       H70 5238
   Revision: AB001001    Serial number: VWZ6Z7M6168141
   Coding: 00000400000000A00011
   Shop #: WSC 05314 123 12345
   VCID: 3753F69186F5FB3332-8062

   Subsystem 1 - Part No: 7L6 919 859 G
   Component: AUNZ V8  8207

No fault code found.

-------------------------------------------------------------------------------

-------------------------------------------------------------------------------
Address 6C: Back-up Cam.        Labels: 5N0-907-441.clb
   Part No SW: 5N0 907 441 A    HW: 5N0 907 441 A
   Component: J772__Rearview      0030
   Revision: 00H13000    Serial number: 525PA8-J484094
   Coding: 0020010
   Shop #: WSC 01324 011 00200
   VCID: 2D7FD4F9B4A941E358-8078

2 Faults Found:
01043 - Control Module; Incorrect Software Version
            000 - -
             Freeze Frame:
                    Fault Status: 01100000
                    Fault Priority: 2
                    Fault Frequency: 1
                    Reset counter: 71
                    Time Indication: 0

02203 - Audio / Video Input 1
            011 - Open Circuit
             Freeze Frame:
                    Fault Status: 01101011
                    Fault Priority: 4
                    Fault Frequency: 1
                    Reset counter: 71
                    Mileage: 231027 km
                    Time Indication: 0
                    Date: 2015.09.07
                    Time: 13:37:31

             Freeze Frame:
                        Term 15 On
                        Reverse OFF
                    Count: 3


-------------------------------------------------------------------------------
Address 6D: Trunk Elect.        Labels: 3C9-827-383.clb
   Part No SW: 3C9 827 383 K    HW: 3C9 827 383 K
   Component: J605  HECKDECKEL    0830
   Revision: 00H52001
   Shop #: WSC 05314 000 00000
   VCID: 3957F0A970E1ED43C4-806C

   Subsystem 1 - Part No: 3C9 827 384 K
   Component: J756  HECKDECKEL    0830

   Subsystem 2 - Serial number: 1200H52001001B0003ˇ

No fault code found.

-------------------------------------------------------------------------------
Address 77: Telephone (J412)       Labels:| 7P6-035-730.clb
   Part No SW: 7P6 035 730 J    HW: 7P6 035 730 J
   Component: TELEFON       H15 3200
   Revision: 1B001001    Serial number: 00007662941390
   Coding: 0201000000010101
   Shop #: WSC 00015 115 12345
   ASAM Dataset: EV_UHVNA 002720
   ROD: EV_UHVNA_002_VW25.rod
   VCID: 3957F0A9B8E1ED43C4-806C

No fault code found.

End-------------------------(Elapsed Time: 02:46)--------------------------

[iampivot]

I've seen quite a few people having issues coding the j772 module, so I guess it might need something else than vag-com?

[kamold]

You have a Tiguan RVC module, not Passat. That's why it's reporting incorrect software.

[iampivot]

Yes I tried changing the coding to 0020007 for passat, but it won't accept it, giving error 31: out of range.
