Thread: Touareg 7L 6D Trunk Elec - Electric trunk not closing using the close switch

  1. #1
    Join Date
    Jan 2023
    Location
    Victoria
    Posts
    5
    Users Country Flag

    Touareg 7L 6D Trunk Elec - Electric trunk not closing using the close switch

    Hello All,
    My Touareg 7L has developed a issue hoping someone here would know where to look to try and fix it.

    The Issue
    The Boot lid(Trunk) opens fine electronically using the driver door button and remote etc.
    Once open, it will not close using the close button (F206) located at the bottom of the boot lid.
    The close button used to work fine, it just stopped working one day.

    Minor annoyance, I have to manually push the boot lid closed and it locks fine.

    Troubleshooting I've done
    1. I have checked the wires(continuity test) and all 4 wires are fine from the button all the way to the lid control module hidden at the bottom left corner of the car.
    2. Thinking it was the button itself, I replaced it with another one.

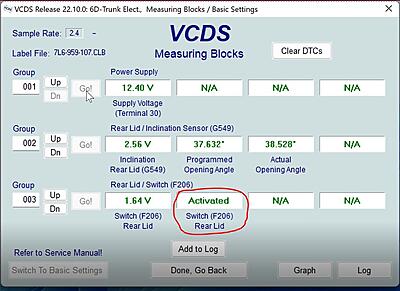

    3. Using VCDS I can see the button activating when pressed.
    4. Done the VCDS test for the 6D trunk elect. and the boot lid activates in both directions electronically (Open and Close) without any issue.
    5. Done Basic settings as per instructions here. Didn't solve the problem.


    All the above, leads me to think it is some sort of software setting issue. But what?

    I have a tow bar fitted although I doubt it has anything to do with it. It used to work fine until few months ago.
    Below is a screen shot of the 6D Electric Trunk settings in VCDS.


    Any suggestions ?
    Has anyone got a 7L Touareg? What is your setting like?

    Touareg 7L 6D Trunk Elec - Electric trunk not closing using the close switch-closebuttonactivated-jpg

    Touareg 7L 6D Trunk Elec - Electric trunk not closing using the close switch-vcdsclose-jpg

    Thanks.

  2. #2
    Join Date
    Dec 2011
    Location
    Pacific Paradise QLD
    Posts
    7,359
    Users Country Flag
    Having a trailer usually prevents the boot opening remotely so as you dont whack anything on the towbar have to be careful with bikeracks etc as well
    2021 Kamiq LE 110 , Moon White, BV cameras F & B
    Mamba Ebike to replace Tiguan

  3. #3
    Join Date
    Feb 2012
    Location
    Mornington Peninsula, VIC
    Posts
    566
    Users Country Flag
    Not sure if this will help, but here is a controller map of the 7P Touareg 6D module, I think Hillbilly is on the right track, look over the advance measuring values and see if some value may be blocking the function (like trailer detected)

    Code:
    ;SW:7P6-959-107-C   HW:7P6-959-107 ---  Trunk Elect.
    ;Component:HDSG-Modul    H10 0043 Coding:0533314003
    ;EV_HeckkTouar202142EV_HeckkTouar.rod
    ;Tuesday9May2023
    ;VCDS Version: Release 23.3.1 (x64)  Data version: 20230421 DS346.2
    ;VCID: BFD0AD2AC7FAB9D2B61-80EA

    GroupDescriptionActual
    IDE00002Transport modenot active
    IDE00019Voltage terminal 3011.66 V
    IDE00030Status of actuator testnot active
    IDE00075Vehicle speed0 km/h
    IDE00102Control Module temperature14 °C
    IDE00301Mileage121286 km
    IDE00310Outside temperature13 °C
    IDE00320Consistency of EEPROM dataValid EEPROM Data
    IDE00322Status of basic settingnot active
    IDE00325Diagnostic modeVW - diagnostic mode
    IDE00798Number of possible access authorizations2
    IDE01231Terminal 30 voltage for actuators11.66 V
    IDE01846Static current shut-off stageDeactivation stage 0
    IDE01990-MAS01870Pressing a button-Button for rear lid unlocking in rear lidNot operated
    IDE01990-MAS01871Pressing a button-Rear lid lock button in luggage compartmentNot operated
    IDE01990-MAS01872Pressing a button-Rear lid remote control lock switchNot operated
    IDE01990-MAS01873Pressing a button-Rear lid unlock button in remote keyNot operated
    IDE01991Motor 1 for tailgate: statusnot active
    IDE02010Motor 1 for rear lid: activation0 %
    IDE02011Motor 1 for tailgate: current0 A
    IDE02012Motor 2 for tailgate: statusnot active
    IDE02013Motor 2 for rear lid: activation0 %
    IDE02014Motor 2 for tailgate: current0 A
    IDE02017Rear lid position: relative0 %
    IDE02018Rear lid position: absolute32
    IDE02019Position programmable opening stop99 %
    IDE02020Learned open end position667
    IDE02049Trailer detectednot detected
    IDE02068-MAS00106Time stamp-Year23
    IDE02068-MAS00107Time stamp-Month5
    IDE02068-MAS00108Time stamp-Day9
    IDE02068-MAS00109Time stamp-Hours20
    IDE02068-MAS00110Time stamp-Minutes43
    IDE02068-MAS00111Time stamp-Seconds6
    IDE02072Pitch angle1 °
    IDE02073Roll angle5 °
    IDE02075Play protection time-out time10 s
    IDE02077Remaining run time for play protection0 s
    IDE02078Activations of rear lid closing button7481
    IDE02079Activations of rear lid unlocking button7044
    IDE02080Activations of rear lid remote unlocking switch434
    IDE02081Activation of remote key button rid lid opening405
    IDE02082Opening cycle counter7407
    IDE02083Closing cycle counter7400
    IDE02084Counter obstruction detected306
    IDE02085Counter of selectable opening stop adapted1
    IDE02086Play protection counter active0
    IDE02087Counter for function limitation due to insufficient voltage0
    IDE02088Counter for function limitation due to excessive voltage0
    IDE02089Counter for lock or closing assist implausible353
    IDE02090Counter for function limitation due to excessive temperature0
    IDE02091Counter for terminal 30 reset8
    IDE02092Tailgate conditionlocked
    IDE02093-MAS01943Status of rear lid lock-Terminal 1closed
    IDE02093-MAS01944Status of rear lid lock-Terminal 2closed
    IDE02094Status of closing assistretracted
    IDE02095-MAS01947Status of pinch protection-Clamping strip 1No obstacle
    IDE02095-MAS01948Status of pinch protection-Clamping strip 2No obstacle
    IDE02095-MAS01949Status of pinch protection-Clamping strip 3Malfunction
    IDE02095-MAS01950Status of pinch protection-Clamping strip 4Malfunction
    IDE02096Warning soundOFF
    IDE02097Position Sensor 132
    IDE02098Position sensor 232
    IDE02100Status sensor 1OK
    IDE02101Status Sensor 2OK
    IDE02102Motor 1 for rear lid: voltage1.87 V
    IDE02103Motor 2 for rear lid: voltage1.87 V
    IDE02171-MAS01913Terminals for closing assist-Closing assistancenot installed
    IDE02171-MAS01943Terminals for closing assist-Terminal 1not installed
    IDE02171-MAS01944Terminals for closing assist-Terminal 2not installed
    IDE02174Counter of flap opening angle basic settings1
    IDE02775Status of basic setting dataBasic setting performed successfully
    IDE03215Engine start using start-stop functionnot active
    IDE03421-MAS02684Hall sensors for position detection-Motor in rear lid control module: sensor 1Not operated
    IDE03421-MAS02685Hall sensors for position detection-Motor in rear lid control module: sensor 2Not operated
    IDE03421-MAS02686Hall sensors for position detection-Motor 2 in rear lid: sensor 1Not operated
    IDE03421-MAS02687Hall sensors for position detection-Motor 2 in rear lid: sensor 2Not operated
    IDE03422-MAS01947Pinch protection voltages-Clamping strip 14.53 V
    IDE03422-MAS01948Pinch protection voltages-Clamping strip 24.55 V
    IDE03422-MAS01949Pinch protection voltages-Clamping strip 30.61 V
    IDE03422-MAS01950Pinch protection voltages-Clamping strip 40.53 V
    IDE03773Counter for emerg. run. ops. because closing pos. not reached0
    IDE03774Counter for closing operations canceled by lock-up3639
    IDE03908Warning tone: output voltage0 V
    IDE03909Pitch angle incline sensor: voltage0 V
    IDE03910Roll angle incline sensor: voltage0 V
    IDE04718Motor 1 for rear lid: RPM0 /min
    IDE04719Motor 2 for rear lid: RPM0 /min
    IDE05101Number of activations to play protection active20
    IDE05229Reason for cancellation of rear lid procedurecompleted successfully

    Elapsed Time: 00:06
    Last edited by MIG; 09-05-2023 at 11:38 PM.
    MY12 Passat FSI Highline | 3.6L VR6 | Cashmere Brown | Driver Assistance Package | Dynaudio | Discover Media | TPMS Direct | Side Assist | Adaptive Cruise | 3D colour cluster | More coming soon
    Genuine VCDS HEX-NET and VCP Pro

  4. #4
    Join Date
    Jan 2023
    Location
    Victoria
    Posts
    5
    Users Country Flag Thread Starter
    Thanks for the replies.
    I will check and compare the values. I have a bike rack that I connect to the car now and then, it may be playing up with the close function.

  5. #5
    Join Date
    May 2023
    Location
    Atlanta, USA
    Posts
    11

    Quote Originally Posted by MIG View Post
    Not sure if this will help, but here is a controller map of the 7P Touareg 6D module, I think Hillbilly is on the right track, look over the advance measuring values and see if some value may be blocking the function (like trailer detected)

    Code:
    ;SW:7P6-959-107-C   HW:7P6-959-107 ---  Trunk Elect.
    ;Component:HDSG-Modul    H10 0043 Coding:0533314003
    ;EV_HeckkTouar202142EV_HeckkTouar.rod
    ;Tuesday9May2023
    ;VCDS Version: Release 23.3.1 (x64)  Data version: 20230421 DS346.2
    ;VCID: BFD0AD2AC7FAB9D2B61-80EA

    GroupDescriptionActual
    IDE00002Transport modenot active
    IDE00019Voltage terminal 3011.66 V
    IDE00030Status of actuator testnot active
    IDE00075Vehicle speed0 km/h
    IDE00102Control Module temperature14 °C
    IDE00301Mileage121286 km
    IDE00310Outside temperature13 °C
    IDE00320Consistency of EEPROM dataValid EEPROM Data
    IDE00322Status of basic settingnot active
    IDE00325Diagnostic modeVW - diagnostic mode
    IDE00798Number of possible access authorizations2
    IDE01231Terminal 30 voltage for actuators11.66 V
    IDE01846Static current shut-off stageDeactivation stage 0
    IDE01990-MAS01870Pressing a button-Button for rear lid unlocking in rear lidNot operated
    IDE01990-MAS01871Pressing a button-Rear lid lock button in luggage compartmentNot operated
    IDE01990-MAS01872Pressing a button-Rear lid remote control lock switchNot operated
    IDE01990-MAS01873Pressing a button-Rear lid unlock button in remote keyNot operated
    IDE01991Motor 1 for tailgate: statusnot active
    IDE02010Motor 1 for rear lid: activation0 %
    IDE02011Motor 1 for tailgate: current0 A
    IDE02012Motor 2 for tailgate: statusnot active
    IDE02013Motor 2 for rear lid: activation0 %
    IDE02014Motor 2 for tailgate: current0 A
    IDE02017Rear lid position: relative0 %
    IDE02018Rear lid position: absolute32
    IDE02019Position programmable opening stop99 %
    IDE02020Learned open end position667
    IDE02049Trailer detectednot detected
    IDE02068-MAS00106Time stamp-Year23
    IDE02068-MAS00107Time stamp-Month5
    IDE02068-MAS00108Time stamp-Day9
    IDE02068-MAS00109Time stamp-Hours20
    IDE02068-MAS00110Time stamp-Minutes43
    IDE02068-MAS00111Time stamp-Seconds6
    IDE02072Pitch angle1 °
    IDE02073Roll angle5 °
    IDE02075Play protection time-out time10 s
    IDE02077Remaining run time for play protection0 s
    IDE02078Activations of rear lid closing button7481
    IDE02079Activations of rear lid unlocking button7044
    IDE02080Activations of rear lid remote unlocking switch434
    IDE02081Activation of remote key button rid lid opening405
    IDE02082Opening cycle counter7407
    IDE02083Closing cycle counter7400
    IDE02084Counter obstruction detected306
    IDE02085Counter of selectable opening stop adapted1
    IDE02086Play protection counter active0
    IDE02087Counter for function limitation due to insufficient voltage0
    IDE02088Counter for function limitation due to excessive voltage0
    IDE02089Counter for lock or closing assist implausible353
    IDE02090Counter for function limitation due to excessive temperature0
    IDE02091Counter for terminal 30 reset8
    IDE02092Tailgate conditionlocked
    IDE02093-MAS01943Status of rear lid lock-Terminal 1closed
    IDE02093-MAS01944Status of rear lid lock-Terminal 2closed
    IDE02094Status of closing assistretracted
    IDE02095-MAS01947Status of pinch protection-Clamping strip 1No obstacle
    IDE02095-MAS01948Status of pinch protection-Clamping strip 2No obstacle
    IDE02095-MAS01949Status of pinch protection-Clamping strip 3Malfunction
    IDE02095-MAS01950Status of pinch protection-Clamping strip 4Malfunction
    IDE02096Warning soundOFF
    IDE02097Position Sensor 132
    IDE02098Position sensor 232
    IDE02100Status sensor 1OK
    IDE02101Status Sensor 2OK
    IDE02102Motor 1 for rear lid: voltage1.87 V
    IDE02103Motor 2 for rear lid: voltage1.87 V
    IDE02171-MAS01913Terminals for closing assist-Closing assistancenot installed
    IDE02171-MAS01943Terminals for closing assist-Terminal 1not installed
    IDE02171-MAS01944Terminals for closing assist-Terminal 2not installed
    IDE02174Counter of flap opening angle basic settings1
    IDE02775Status of basic setting dataBasic setting performed successfully
    IDE03215Engine start using start-stop functionnot active
    IDE03421-MAS02684Hall sensors for position detection-Motor in rear lid control module: sensor 1Not operated
    IDE03421-MAS02685Hall sensors for position detection-Motor in rear lid control module: sensor 2Not operated
    IDE03421-MAS02686Hall sensors for position detection-Motor 2 in rear lid: sensor 1Not operated
    IDE03421-MAS02687Hall sensors for position detection-Motor 2 in rear lid: sensor 2Not operated
    IDE03422-MAS01947Pinch protection voltages-Clamping strip 14.53 V
    IDE03422-MAS01948Pinch protection voltages-Clamping strip 24.55 V
    IDE03422-MAS01949Pinch protection voltages-Clamping strip 30.61 V
    IDE03422-MAS01950Pinch protection voltages-Clamping strip 40.53 V
    IDE03773Counter for emerg. run. ops. because closing pos. not reached0
    IDE03774Counter for closing operations canceled by lock-up3639
    IDE03908Warning tone: output voltage0 V
    IDE03909Pitch angle incline sensor: voltage0 V
    IDE03910Roll angle incline sensor: voltage0 V
    IDE04718Motor 1 for rear lid: RPM0 /min
    IDE04719Motor 2 for rear lid: RPM0 /min
    IDE05101Number of activations to play protection active20
    IDE05229Reason for cancellation of rear lid procedurecompleted successfully

    Elapsed Time: 00:06
    Greatly explained

Tags for this Thread

Bookmarks

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
| |
