Originally Posted by
_Jacobm
Cheers for that detailed explanation! Will give it a shot when I find some time, thanks for that

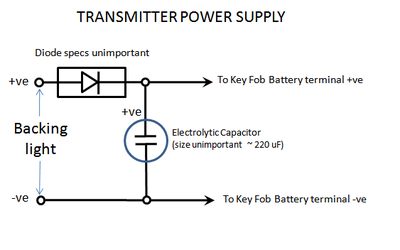

Jscobm: I thought that I might sned you the circuit diagram below. It's the power supply arrangement for the trannmitter. As I have indicated, there is no great precision in picking the components. I found (perhaps not surprising if you think about it) that the larger the size of the capacitor, the longer the new backing light will stay illuminated after reverse gear is de-selected. 220uF was about right for my transmitter, but you might need to play with this part of the project. I took the transmitter out of its key-fob case and put it in a piece of heat shrink tubing which I then tucked in behind the tailgate lining.
Good luck with the project. Give me a shout if you get into trouble
