Bling bling for the car door

[tigger73]

OK This weekends project arrived a couple of days ago - door bling. Well perhaps a little more toned down than the other door bling that didn't quite make it onto the car. More like putting all the OEM bits back on which got taken off for cost savings measures.



Apparently (and I'll find out soon enough) the connections are already in the door to plug the connector for the lights into and all that is needed is to code them up.

[Ryan_R]

Think that's the only GTI upgrade I'm missing from my car (besides the round shifter). Let us know how easy they are to install.

[tigger73]

Installation complete - door lights and switches are all in and working.

A couple of pictures:






Strongly recommend getting the pre-made wires/connectors for the warning lights as it saves a lot of stuffing around. These come with the warning lights that I bought here: Door Warning Lights - Pair



Also if you purchase the bits from Bold-Sport.com I suggest getting the following items:

Door Panel Clip (in case you bust a few getting the door panels off)
Cloth Webbed Adhesive Tape (useful for stopping wires rubbing / vibrating inside panels)

As far as installations go it was (reasonably) straight forward. The only problem I encountered was the ground connection on the connector for both front doors were already being used (pin 19). So I used pin 21 on the passenger front and ended up splicing into the wire in pin 19 on the drivers side (tried picking off another ground on connector "C" but this ended up not being a "proper" ground).

The other thing you'll find is the connectors for the front and rear doors are different so the connection cables have slightly different terminal connectors (1 vs 3 in photo):

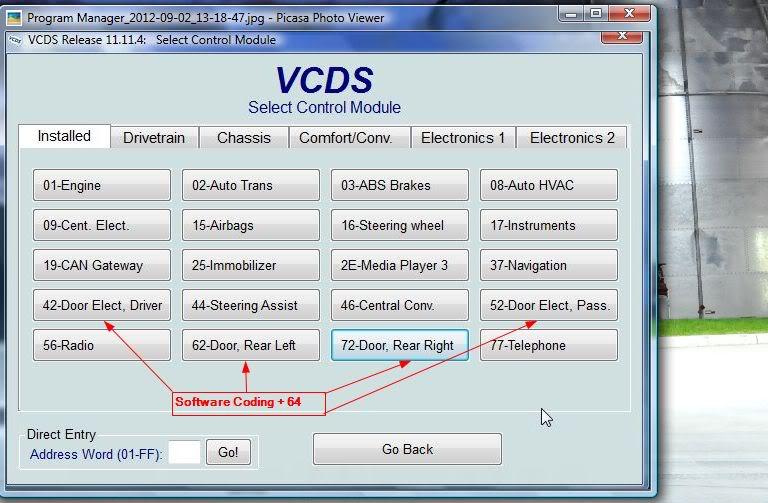

The only thing left to do was to enable the safety lights in VCDS (info courtesy of VWGolf.net.au user - M4RK0):



42-Door Elect Drive => Coding 07 => Software coding: Add 64
52-Door Elect Pass => Coding 07 => Software coding: Add 64
62-Door Rear Left => Coding 07 => Software coding: Add 64
72-Door Rear Right => Coding 07 => Software coding: Add 64



The Old code is 0000144 the New code adding 64 is 0000208

As soon as you click Do it! the lights should work.

[BTJ]

Hi there guys, dropping in from the Polo section after I found this thread on a search.


I ordered a couple of these LEDs and they turned up today yet I'm unsure of a) where to put them and B) how to wire them.

Ive seen them in the door as per the video and that looks pretty cool but I was also thinking of maybe putting them under the seat shining into the footwell to illuminate it when you open the door?

If anyone has any ideas that you'd think would be cool, but didn't want to try Im open to suggestions, and if you have any tips for things to watch out for I'd appreciate that too!

Cheers!

Brendan

[tigger73]

Hi there guys, dropping in from the Polo section after I found this thread on a search.

We won't hold that against you

I ordered a couple of these LEDs and they turned up today yet I'm unsure of a) where to put them and B) how to wire them.

a) I've only seen them put on the door sills or on the boot, however 95% are on door sills.

b) pretty simple - red wire to +12V and black wire to 0V.... but I'm assuming you already knew that. I'd suggest tapping into one of your existing light circuits that go on when you open the doors. Doors or boot are always good. I'm not sure what options you have on the Polo for interior/door lighting though or if you have lights in your doors - as the safety lights above.

Ive seen them in the door as per the video and that looks pretty cool but I was also thinking of maybe putting them under the seat shining into the footwell to illuminate it when you open the door?

If you have footwell lights you could tap into these wires, however in Golf/Tig the footwell lights are "on" at night so you'd also get the logos "on" if you tapped them into this circuit.

Otherwise you'd have to tap into the door open switch somewhere and use this to trigger the lights - again not sure where this is in a Polo.

If anyone has any ideas that you'd think would be cool, but didn't want to try I'm open to suggestions, and if you have any tips for things to watch out for I'd appreciate that too!

Running one off the boot in a Polo would be cool.

[BTJ]

Hi Tigger,

Thanks for the info mate. Its seems what we've been saying in the polo section about you Tiguan owners isn't true after all

Unfortunately I'm away from my car till the end of the month with work but when I get home and get them up and running I'll be sure to drop in and let you know what it looks like.

Cheers

[tigger73]

Hi Tigger,

Thanks for the info mate. Its seems what we've been saying in the polo section about you Tiguan owners isn't true after all

Unfortunately I'm away from my car till the end of the month with work but when I get home and get them up and running I'll be sure to drop in and let you know what it looks like.

Cheers

I'd check what you Polo guys have as far as door control modules go. If it's the same as the Golf (which is the case for the Tiguan), then you'll have a couple of connectors designed for door warning lights that you can use for the laser lights. This would be the simplest.

You can get repair/trigger wires from bold-sport: Custom made trigger wire

Otherwise I believe JayCar can supply similar connectors also.

Pull the connector apart in your door and remove one of the existing wires to check exactly what connector you require.

[Ryan_R]

[BTJ]

Might sound ricey of me, but I reckon a couple of LEDs to light up the logo would look awesome on the front grill of my TSI.

White car, matte black wheels and badges with the white LED highlighting the badge would look wicked.


Hmmmmm

[tigger73]

Might sound ricey of me, but I reckon a couple of LEDs to light up the logo would look awesome on the front grill of my TSI.

White car, matte black wheels and badges with the white LED highlighting the badge would look wicked.


Hmmmmm

If it was red LED you could call your car Rudolf!

I had to be thankful that one of the reindeer antlers fell off when Mrs Tigger went through the drive-through so I got the chance to take the other one off.

If my wife had her way I'd have fairy lights and tinsel on my front grille at Christmas.
